Pinouts Filter
Your Location：
Home
>
Products
>
Dielectric Filter
>
Pinouts Filter

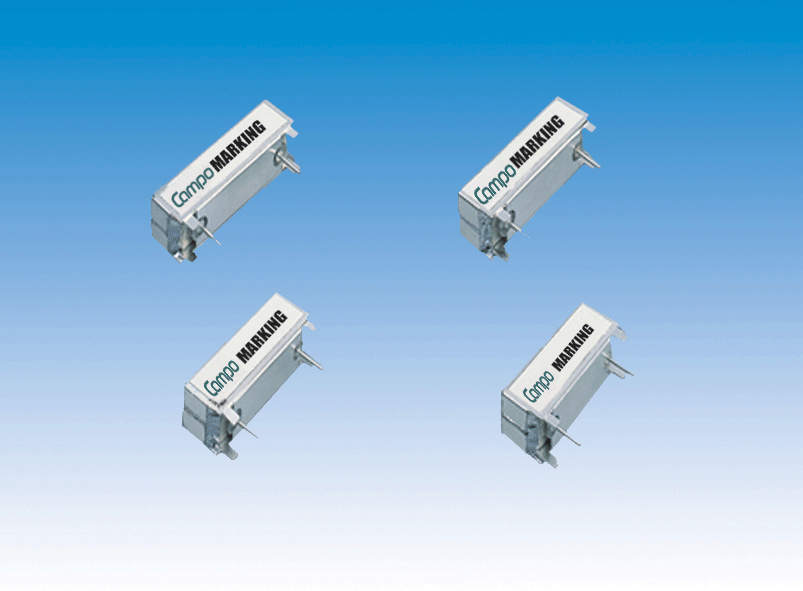

外观 Configuration

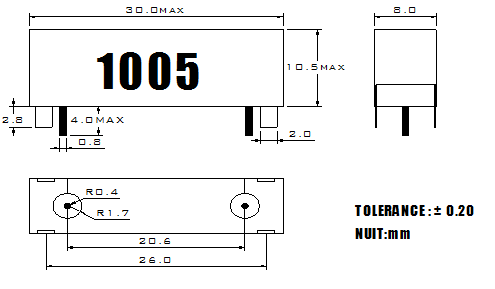

外形尺寸 Dimensions

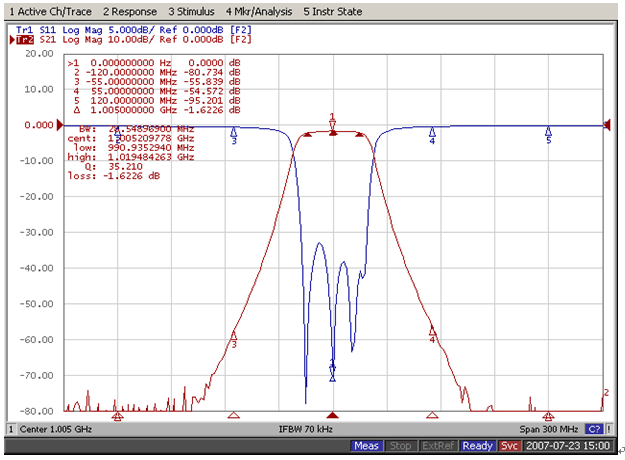

特性图 Typical Characteristics
主要参数 Principal Parameters
型号
Part No.
中心频率
Center Freq
f0(MHz）
带宽(-1dB)
-1dB Band width
(MHz)
插入损耗
Insertion Loss
(dB)max
带内波动
Ripple in BW
(dB)max
驻波比
VSWR
(Ratio)max
阻带衰减
Stop Band Att
(dB)min
(MHz)
工作温度
Operation
Temperature
(℃)
CPF□N30AA
800~1000
30.0
1.8
0.5
1.8
60.0(f0±160)
-55~+85
CPF□N40AA
1000~1200
40.0
1.8
0.5
1.8
60.0(f0±160)
-55~+85
CPF□N50AA
1200~1500
50.0
1.8
0.5
1.8
50.0(f0±160)
-55~+85
CPF□N60AA
1500~1800
60.0
1.8
0.5
1.8
50.0(f0±160)
-55~+85
CPF□N24BA
800~1000
24.0
2.0
0.5
1.8
60.0(f0±120)
-55~+85
CPF□N30BA
1000~1200
30.0
2.0
0.5
1.8
60.0(f0±120)
-55~+85
CPF□N35BA
1200~1500
35.0
2.0
0.5
1.8
50.0(f0±120)
-55~+85
CPF□N40BA
1500~1800
40.0
2.0
0.5
1.8
50.0(f0±120)
-55~+85
CPF□N15CA
800~1000
15.0
2.4
0.5
1.8
60.0(f0±100)
-55~+85
CPF□N20CA
1000~1200
20.0
2.4
0.5
1.8
60.0(f0±100)
-55~+85
CPF□N25CA
1200~1500
25.0
2.4
0.5
1.8
50.0(f0±100)
-55~+85
CPF□N30CA
1500~1800
30.0
2.4
0.5
1.8
50.0(f0±100)
-55~+85
CPF□N15DA
800~1000
15.0
3.0
0.5
1.8
70.0(f0±100)
-55~+85
CPF□N20DA
1000~1200
20.0
3.0
0.5
1.8
70.0(f0±100)
-55~+85
CPF□N25DA
1200~1500
25.0
3.0
0.5
1.8
60.0(f0±100)
-55~+85
CPF□N30DA
1500~1800
30.0
3.0
0.5
1.8
60.0(f0±100)
-55~+85
