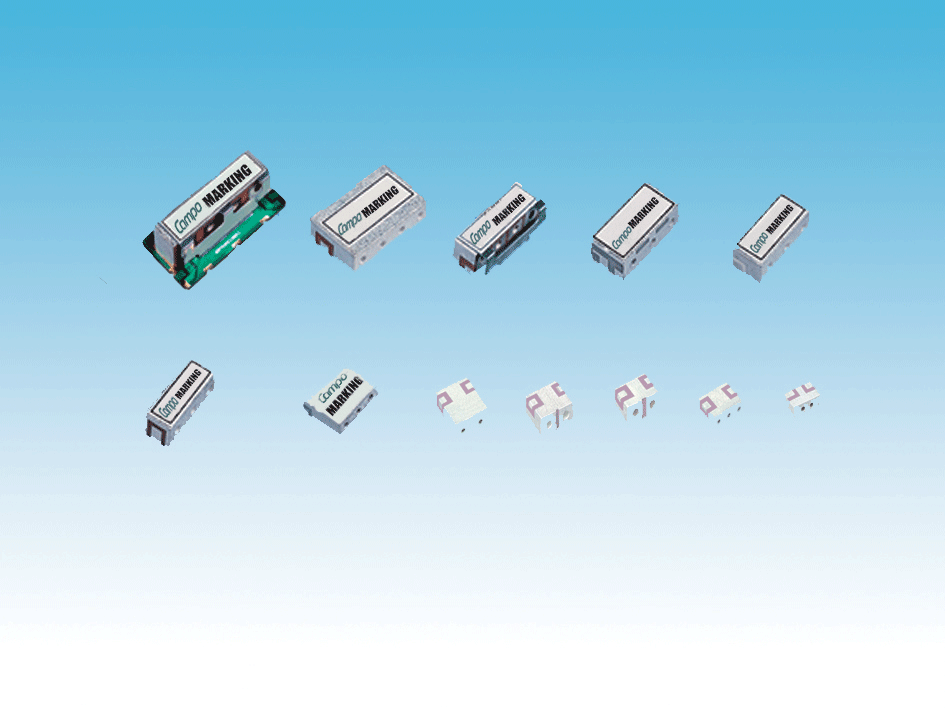

外观 Configuration

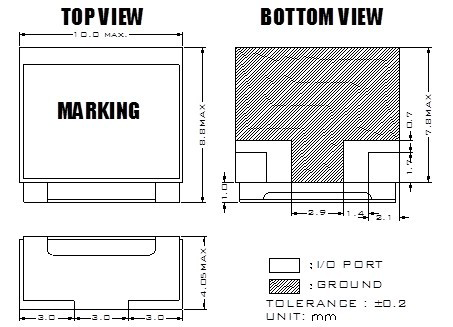

| 外形尺寸 Dimensions |

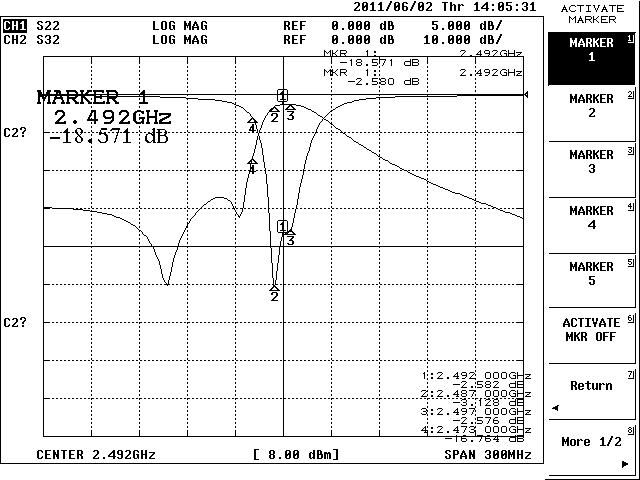

特性图 Typical Characteristics |
.gif) |
.gif) |
主要参数 Principal Parameters
型号
Part No. |
中心频率
Center Freq
f0(MHz)
|
带宽
Band width
|
插入损耗
Insertion Loss
(dB)max
|
带内波动
Ripple in BW
(dB)max
|
驻波比
VSWR
(Ratio)max
|
带外抑制
Attenuation
(dB)min
(MHz)
|
尺寸
Dimension
L×W×H
(mm)
|
应用
Applications
|
| CMFP3C1790F40A |
1790.0 |
40.0 |
2.2 |
1.0 |
2.0 |
40.0(f0-125)
40.0(f0-260)
|
11.6×7.3×4.6 |
TD-SCDMA |
| CMF3C1656S20A |
1656.0 |
20.0 |
2.0 |
1.0 |
1.5 |
40.0(f0±130) |
12.5×10×5 |
TD-SCDMA |
| CMF2C1575F04A |
1575.42 |
4.0 |
3.65 |
0.5 |
1.5 |
32.5(f0+100)
24.0(f0-100)
|
3.9×5.1×1.9 |
GPS |
| CMF3C1575F04A |
1575.42 |
4.0 |
3.0 |
1.0 |
1.7 |
28.5(f0±50) |
7×7.5×3 |
GPS |
| CMFP4C1575S10A |
1575.0 |
10.0 |
3.0 |
1.0 |
1.7 |
30.0(f0±45) |
13×12×3 |
GPS |
| CMFP8C1615F30A |
1615.0 |
30.0 |
3.0 |
1.0 |
1.5 |
60.0(f0±45) |
33.4×11.5×9 |
GPS |
| CMFP4C1900S40A |
1900.0 |
20.0 |
3.0 |
1.0 |
1.8 |
30.0(f0±250) |
11.4×5.9×3.2 |
WCDMA |
| CMFP3C2492F10A |
2492.0 |
10.0 |
0.6 |
0.5 |
1.5 |
65.0(f0-876) |
10×8.8×4.05 |
BEIDOU |
| CMFP6C897F35A |
897.5 |
35.0 |
2.5 |
1.0 |
1.5 |
12.0(f0-27.5)
30.0(f0+27.5)
|
40.75×9.2×11.4 |
GSM |
| CMF3C830S10A |
830.0 |
10.0 |
3.5 |
1.0 |
2.0 |
28.0(f0±40) |
12×9×4.0 |
CDMA |
| CMFP4C830S10A |
830.0 |
10.0 |
3.5 |
1.0 |
1.5 |
40.0(f0±40) |
13×12×5.0 |
CDMA |
| CMF2C1561F10A |
1561.098 |
10.0 |
2.0 |
1.0 |
1.5 |
20.0(f0±50) |
7×7.5×3 |
BEIDOU |
| CMF3C1950S60A |
1950.0 |
60.0 |
2.5 |
1.0 |
1.5 |
40.0(f0±160) |
11.5×6×3.9 |
WCDMA |
| CMF3C1747S75A |
1747.5 |
75.0 |
3.0 |
1.0 |
1.8 |
25.0(f0±132.5) |
5.7×4.4×2.0 |
DCS |
| CMF4C3420S40A |
3420.0 |
40.0 |
2.5 |
0.5 |
1.5 |
35.0(f0±100) |
15×7.5×4.5 |
MMDS |
| CMF3C3462S27A |
3462.5 |
27.0 |
3.0 |
1.0 |
1.5 |
15.0(f0±86) |
8.3×7.5×3.0 |
MMDS |
| CMF3C2017S77A |
2107.5 |
77.0 |
2.5 |
1.0 |
2.0 |
30.0(1~1720)
27.0(1720~1880)
20.0(1880~2200)
|
5.0×3.8×2.0 |
TD-SCDMA |
| CMFP8C2017F15A |
2017.5 |
15.0 |
2.0 |
1.0 |
1.5 |
35.0(2100~2690) |
52×17×15 |
TD-SCDMA |
| CMFP8C2140F160A |
2140.0 |
160.0 |
3.0 |
1.0 |
1.5 |
45.0(1920~2010)
35.0(2270~2500)
|
33.4×11.5×6.2 |
WCDMA |
| CMF3C3550F100A |
3550.0 |
100.0 |
3.0 |
1.0 |
1.5 |
20.0(3340~3440)
25.0(3185~3290)
6.0(7000~7200)
|
6.7×4.4×3.0 |
WIMAX |
| CMF3C2550F140A |
2550.0 |
140.0 |
2.0 |
1.0 |
1.5 |
30.0(DC~2280)
20.0(2280~2439)
8.0(2760~3600)
|
6.7×5.0×3.0 |
WIMAX |
|
|
|
