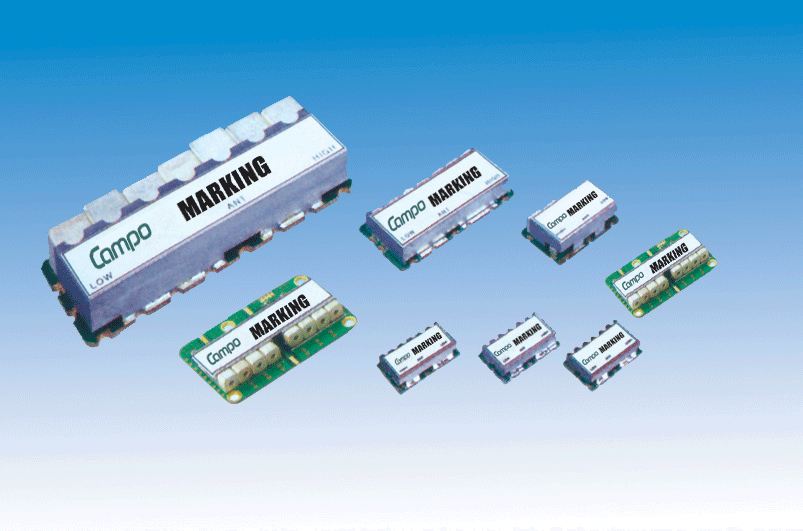

外观 Configuration

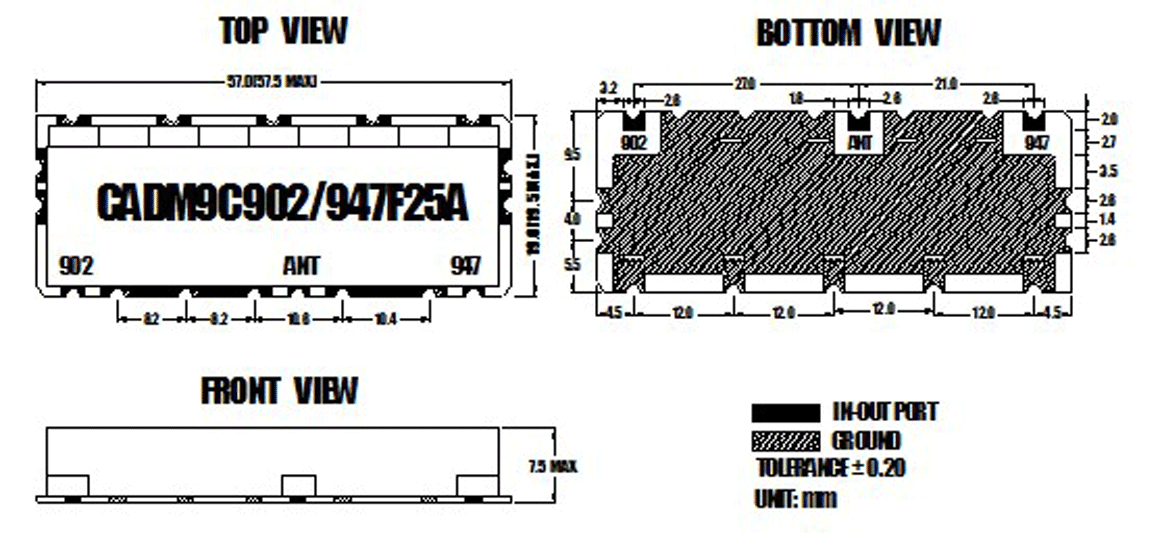

| 外形尺寸 Dimensions |

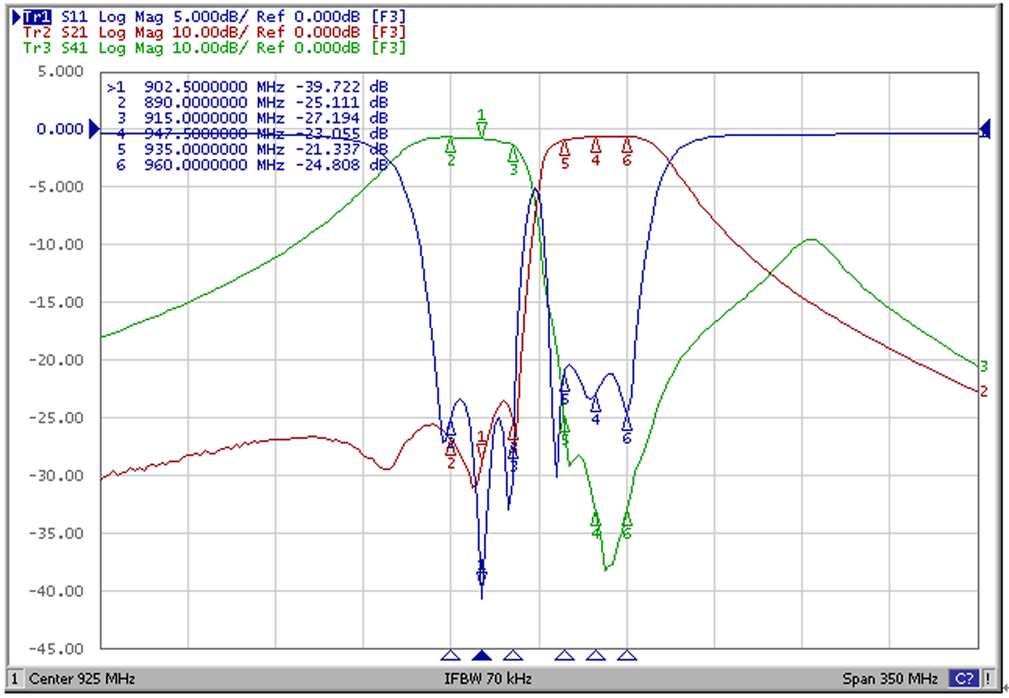

特性图 Typical Characteristics |
.gif) |
.gif) |
主要参数 Principal Parameters
型号
Part No. |
中心频率
Center Freq
f0(MHz
|
带宽
Band width
(MHz) |
插入损耗
Insertion Loss
(dB)max |
驻波比
VSWR
(Ratio)max |
带外抑制
Attenuation
(dB)min
(MHz) |
尺寸
Dimension
L×W×H
(mm) |
应用
Applications |
| CADM8C830/875F10A |
Tx |
830.0 |
10.0 |
2.0 |
1.5 |
48.0(fr±5) |
100×34×14 |
CHINA
CDMA
|
| Rx |
875.0 |
10.0 |
2.0 |
1.5 |
50.0(fr±5) |
| CADM1950/2140F60A |
Tx |
1950.0 |
60.0 |
2.8 |
1.8 |
40.0(fr±30) |
21×15×4.5 |
IMT-2000 |
| Rx |
2140.0 |
60.0 |
2.5 |
1.8 |
48.0(fr±30) |
| CADM7C1880/1960F60A |
Tx |
1880.0 |
60.0 |
2.6 |
1.8 |
25.0(fr±30) |
23×13×4.5 |
US-PCS |
| Rx |
1960.0 |
60.0 |
3.5 |
1.8 |
22.0(fr±30) |
| CADM4C1227/1575S20A |
Tx |
1227.0 |
20.0 |
1.0 |
1.7 |
40.0(fr±10) |
26×15×7.5 |
GPS |
| Rx |
1575.0 |
20.0 |
1.0 |
1.7 |
40.0(fr±10) |
| CADM7C830/875F10B |
Tx |
830.0 |
10.0 |
2.5 |
1.5 |
50.0(fr±5) |
47×19×7 |
CDMA |
| Rx |
875.0 |
10.0 |
2.5 |
1.5 |
55.0(fr±5) |
| CADM9C902/947F25B |
Tx |
902.5 |
25.0 |
4.3 |
1.8 |
42.0(fr±12.5) |
47×19×7 |
GSM |
| Rx |
947.5 |
25.0 |
3.8 |
1.8 |
40.0(fr±12.5) |
| CADM7C836/881F25A |
Tx |
836.5 |
25.0 |
2.6 |
1.7 |
40.0(fr±12.5) |
23×15×4.5 |
KOREA
CDMA
|
| Rx |
881.5 |
25.0 |
3.7 |
1.8 |
50.0(fr±12.5) |
| CADM9C1950/2140F60A |
Tx |
1950.0 |
60.0 |
2.6 |
1.8 |
48.0(fr±30) |
47×18×7 |
IMT-2000 |
| Rx |
2140.0 |
60.0 |
2.0 |
1.8 |
52.0(fr±30) |
| CADM10C1747/1842F75A |
Tx |
1747.5 |
75.0 |
2.5 |
1.5 |
30.0(fr±37.5) |
47×18×7 |
DCS |
| Rx |
1842.5 |
75.0 |
2.5 |
1.5 |
25.0(fr±37.5) |
| CADM7C1595/2492F50/40A |
Tx |
1595.0 |
50.0 |
2.0 |
1.5 |
45.0(fr+747) |
30×13.8×5.5 |
GPS |
| Rx |
2492.0 |
40.0 |
2.0 |
1.5 |
45.0(fr-747) |
| CADM8C3430/3530F60A |
Tx |
3430.0 |
60.0 |
6.5 |
2.0 |
18.0(fr±30) |
36×44×5.5 |
MMDS |
| Rx |
3530.0 |
60.0 |
6.5 |
2.0 |
18.0(fr±30) |
|
|
|
