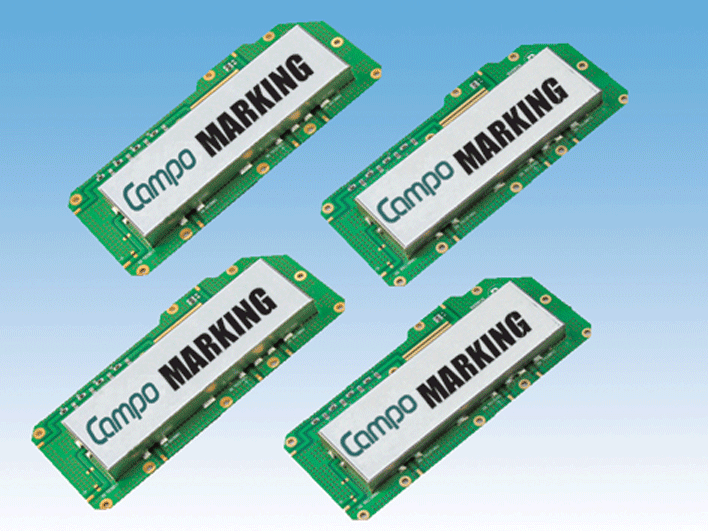

外观 Configuration

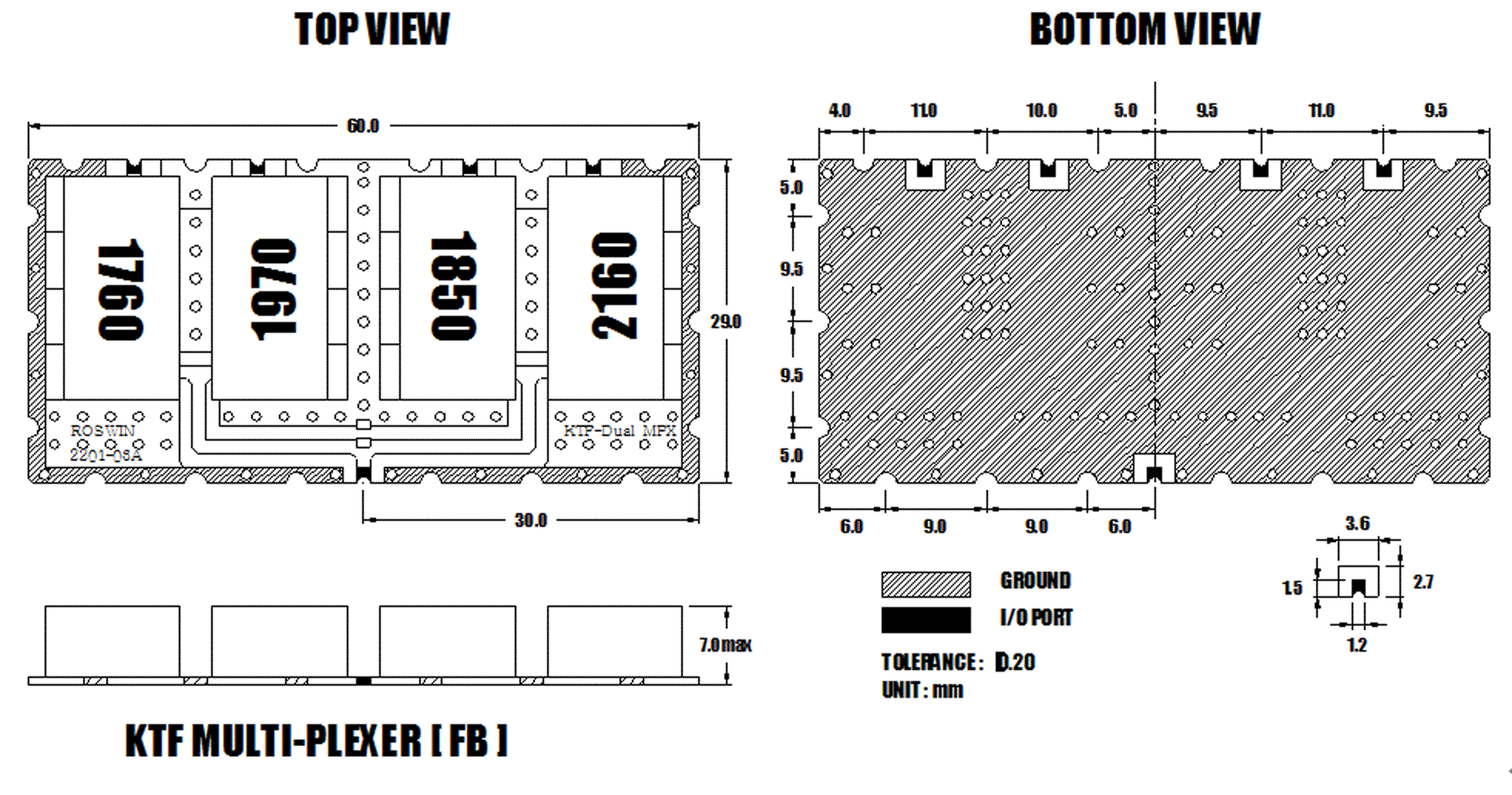

| 外形尺寸 Dimensions |

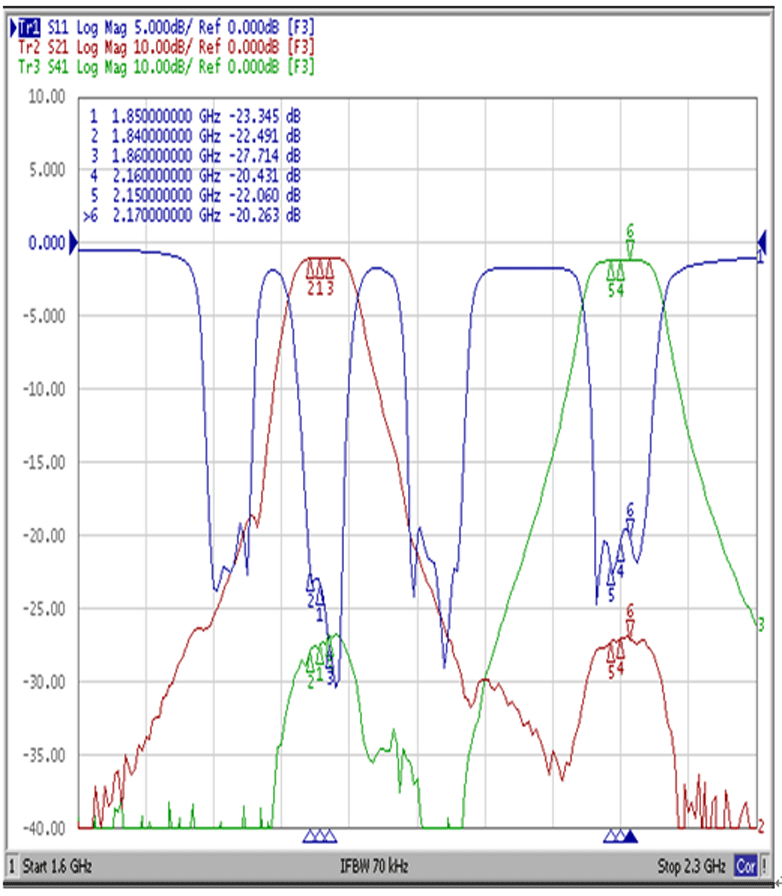

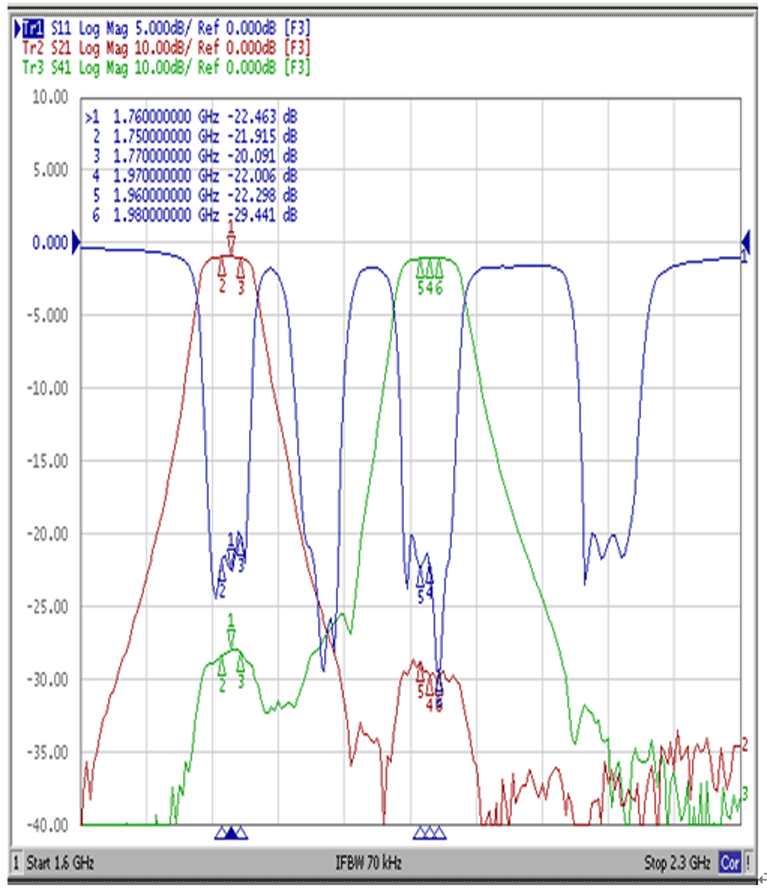

特性图 Typical Characteristics |
 |
 |
 |
主要参数 Principal Parameters
型号
Part No. |
中心频率
Center Freq
f0(MHz） |
带宽
Band width
(MHz) |
插入损耗
Insertion Loss
(dB)max |
驻波比
VSWR
(Ratio)max |
带外抑制
Attenuation
(dB)min
(MHz) |
尺寸
Dimension
L×W×H
(mm) |
应用
Applications |
| CMULITIPLEXER[FA] |
Tx |
836.5 |
25.0 |
2.6 |
1.0 |
55.0(Ft+32.5) |
133×56×9.6 |
CDMA
(KOREA)
WCDMA
(KOREA)
|
| Rx |
881.5 |
25.0 |
2.6 |
1.0 |
63.0(Ft-32.5) |
| Tx |
1950.0 |
20.0 |
2.5 |
1.0 |
55.0(Ft+180) |
| Rx |
2410.0 |
20.0 |
2.5 |
1.0 |
55.0(Ft-180) |
| CMULITIPLEXER[RB] |
Tx |
836.5 |
25.0 |
2.6 |
1.0 |
62.0(Ft-32.5) |
| Rx |
881.5 |
25.0 |
2.6 |
1.0 |
55.0(Ft+32.5) |
| Tx |
2410.0 |
10.0 |
2.5 |
1.0 |
55.0(Ft-180) |
| Rx |
1950.0 |
10.0 |
2.5 |
1.0 |
55.0(Ft+180) |
|
|
|
