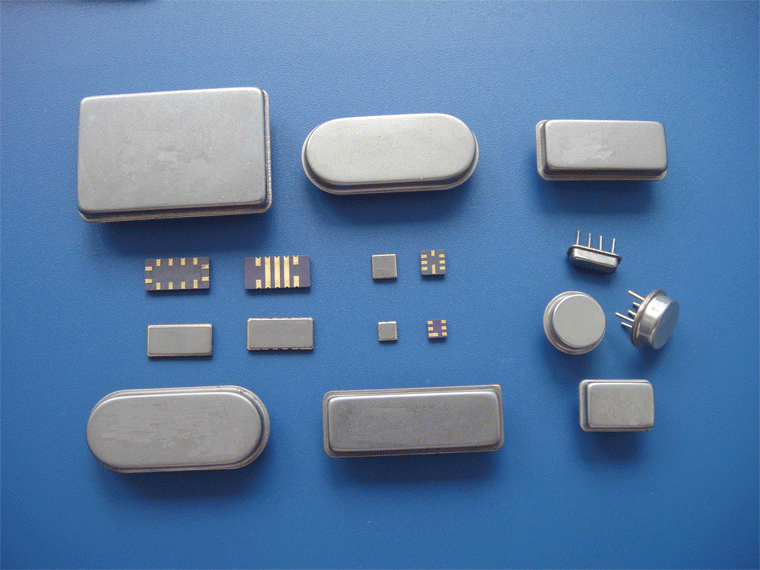

外观 Configuration

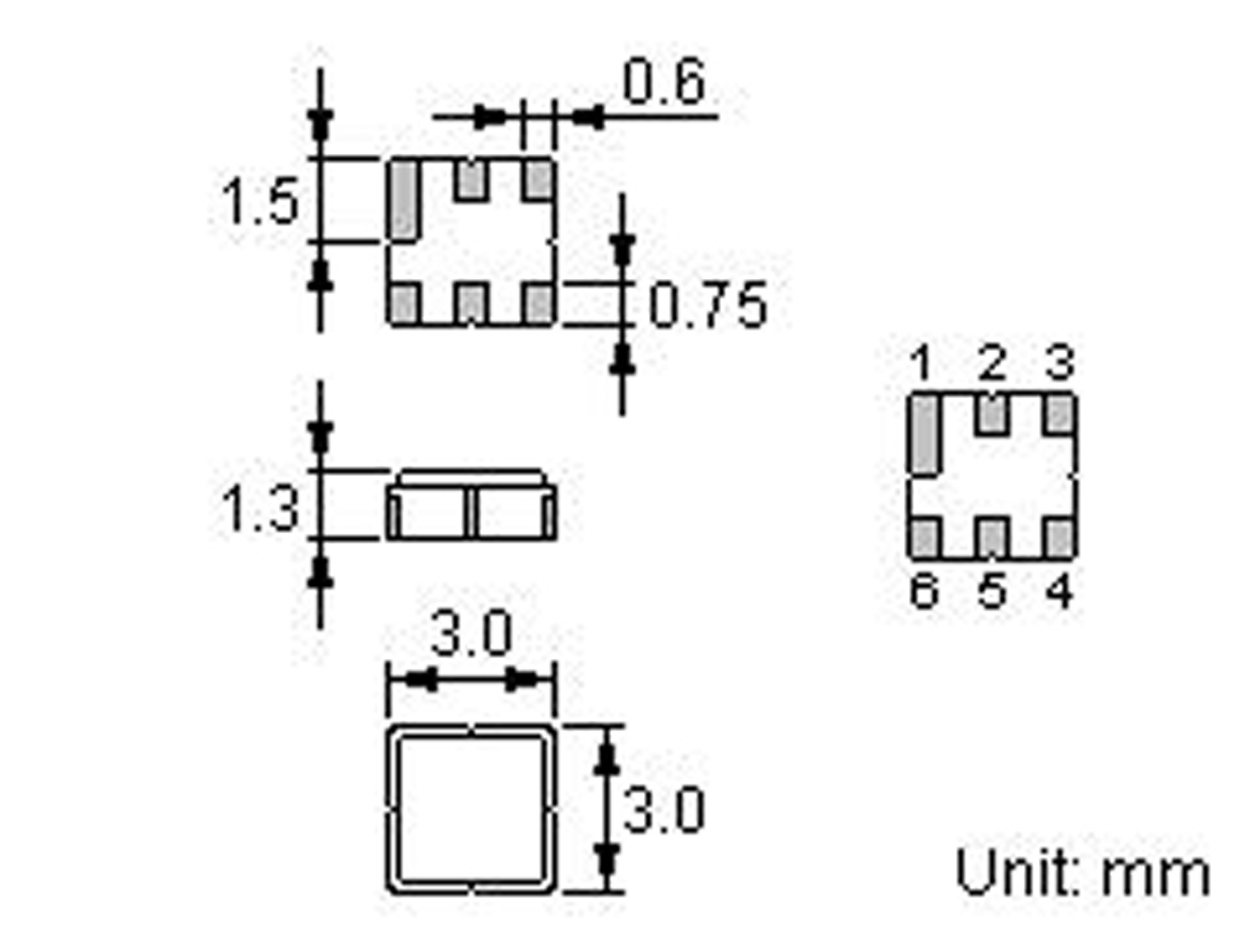

| 外形尺寸 Dimensions |

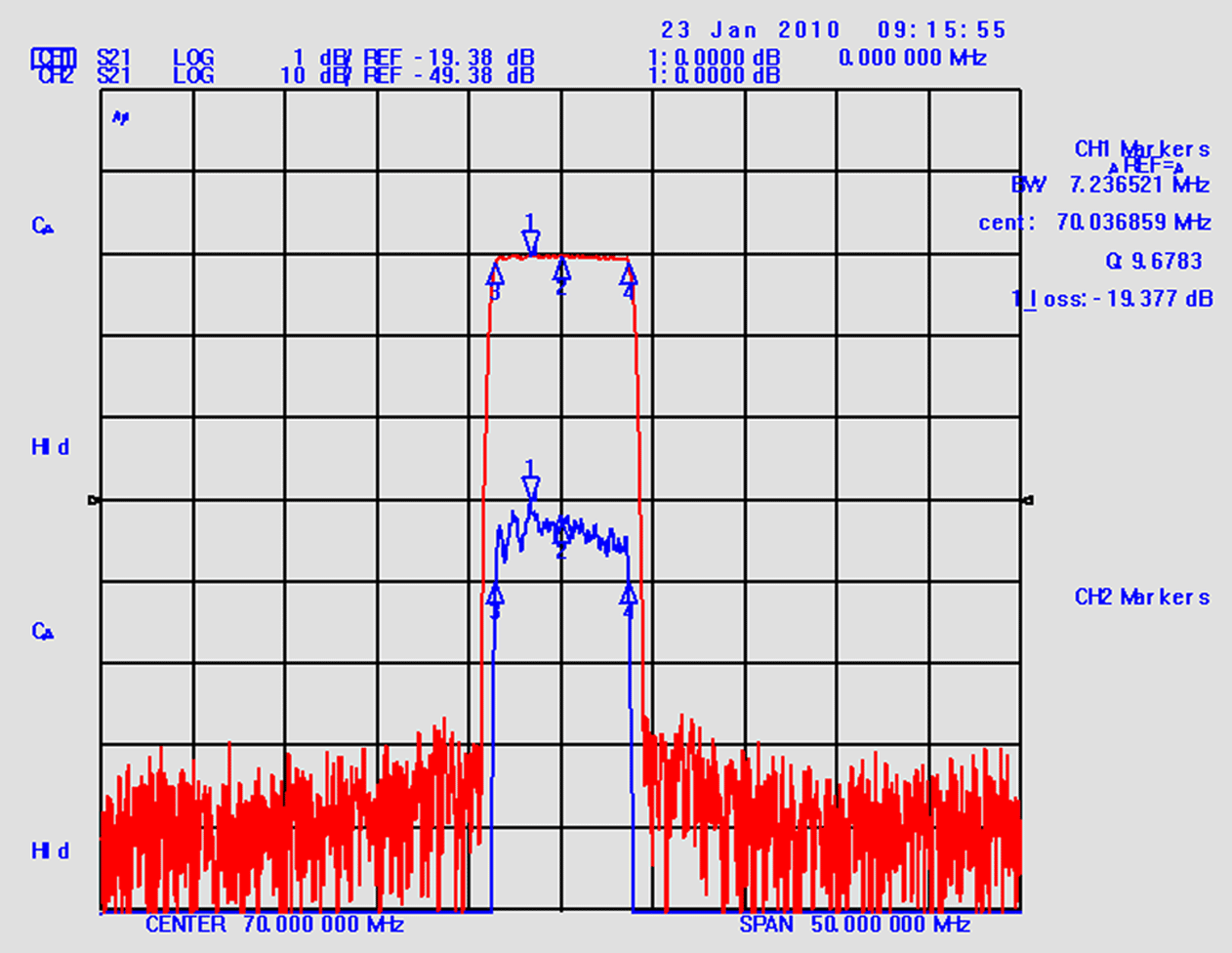

特性图 Typical Characteristics |
 |
 |
主要参数 Principal Parameters
型号
Part No. |
中心频率
Center Freq
f0(MHz |
3dB 带宽
3dB Band width
(MHz) |
40dB 带宽
40dB Band width
(MHz) |
插入损耗
Insertion Loss
(dB)max |
带外抑制
Band Rejection
(dB) min
|
带内波动
Ripple in BW
(dB)max |
封装
Package
|
匹配
Match
|
| CSF10K180A |
10.7 |
0.18 |
1.2 |
8.0 |
37.0 |
1.0 |
SC20-1 |
匹配 |
| CSF21K600A |
21.4 |
0.58(1dB) |
3.3 |
8.0 |
40.0 |
0.5 |
SMD13.3×6.5 |
匹配 |
| CSF50M2B |
50.5 |
2.1(1dB) |
7.5 |
1.8 |
40.0 |
0.8 |
DIP2212 |
|
| CSF70K800A |
70.0 |
0.8 |
3.5 |
3.0 |
50.0 |
0.5 |
DIP2212 |
|
| CSF115M20A |
114.99 |
20.07(1.5dB) |
20.80(35dB) |
29.07 |
51.0 |
1.0 |
DIP3512 |
|
| CSF300K900A |
300.0 |
0.97 |
2.7 |
3.1 |
55.0 |
2.1 |
SC04-06 |
|
| CSF390M24A |
390.46 |
24.82(1dB) |
--- |
2.48 |
52.0 |
0.8 |
SMD3.8×3.8 |
|
| CSF533M21A |
533.5 |
21.0(1dB) |
45.0 |
3.5 |
45.0 |
0.8 |
SMD5.0×5.0 |
|
| CSF876M8A |
876.0 |
8.0 |
--- |
3.5 |
40.0 |
1.0 |
SMD3.8×3.8 |
|
| CSF901M8A |
901.8 |
7.8 |
30.0 |
4.0 |
45.0 |
1.0 |
SC04-06 |
|
| CSF1000M36A |
1000.0 |
36.0(1dB) |
80.0 |
5.0 |
40.0 |
1.2 |
SMD3.8×3.8 |
|
| CSF1575M2A |
1575.42 |
2.0(1dB) |
--- |
0.85 |
50.0 |
--- |
SMD3.0×3.0 |
|
| CSF1615M20A |
1615.0 |
20.0 |
--- |
4.0 |
50.0 |
0.4 |
SMD3.0×3.0 |
|
| CSF1747M75A |
1747.5 |
75.0(1dB) |
--- |
3.2 |
50.0 |
--- |
SMD3.0×3.0 |
|
| CSF2017M15A |
2017.5 |
15.0(1dB) |
--- |
2.7 |
50.0 |
--- |
SMD2.0×1.4 |
|
| CSF2140M60A |
2140.0 |
60.0(1dB) |
--- |
3.5 |
50.0 |
--- |
SMD3.0×3.0 |
|
| CSF2345M27A |
2345.0 |
27.0(1dB) |
--- |
2.4 |
50.0 |
--- |
SMD3.0×3.0 |
|
| CSF2650M70A |
2650.0 |
70.0(1dB) |
--- |
3.5 |
50.0 |
--- |
SMD3.0×3.0 |
|
|
|
|
