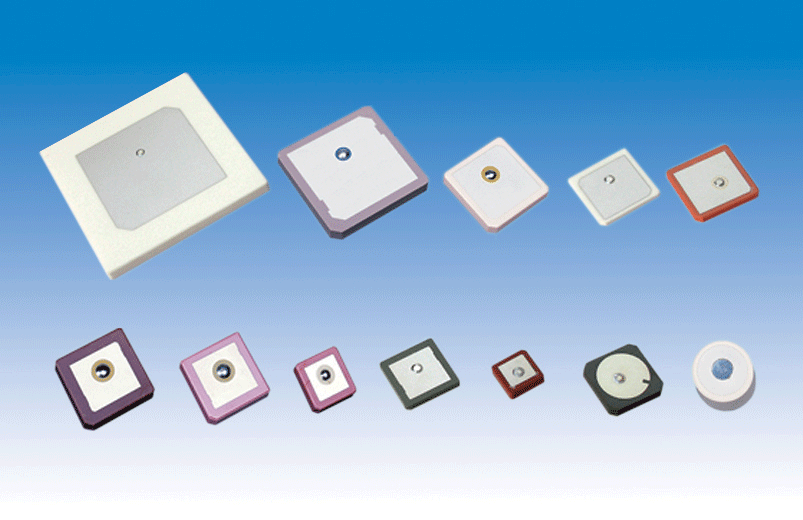

外形 Configutation

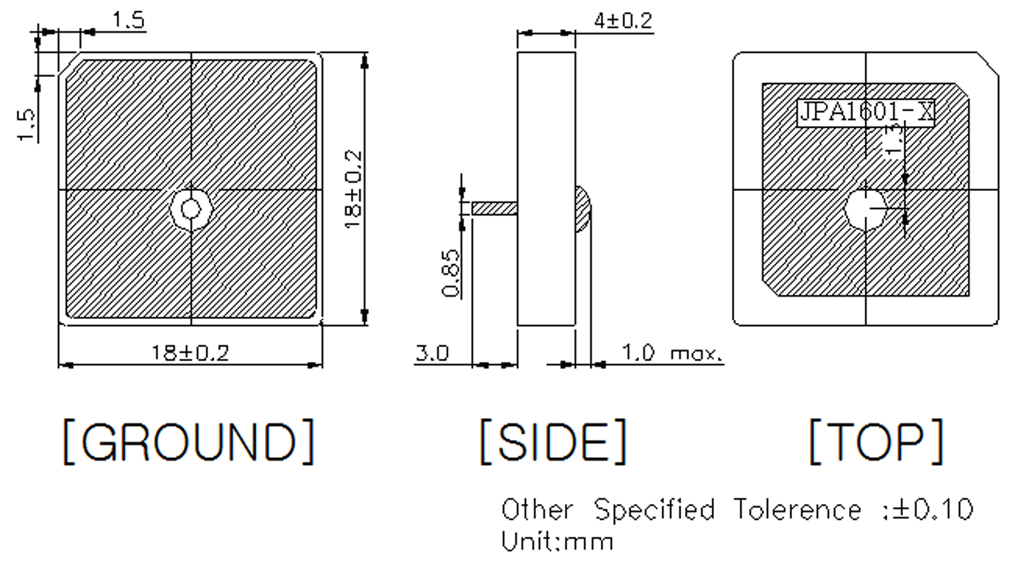

| 外形尺寸 Dimensions |

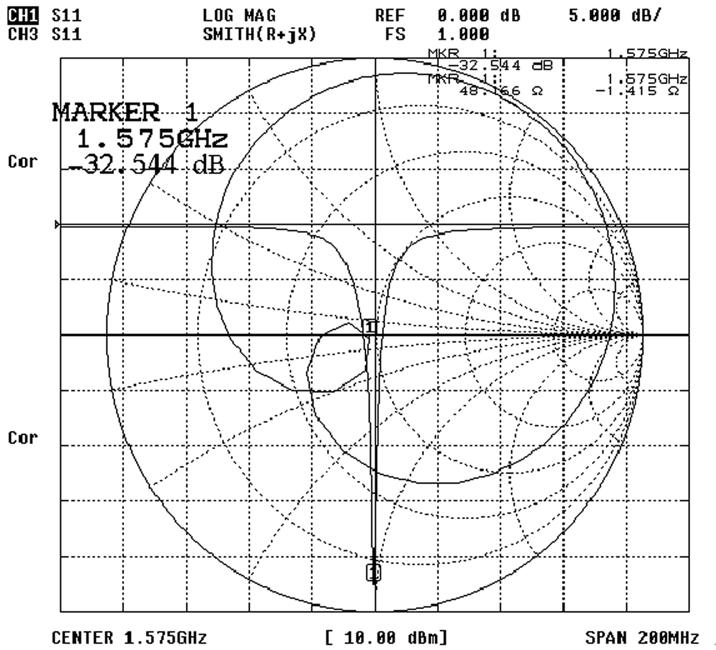

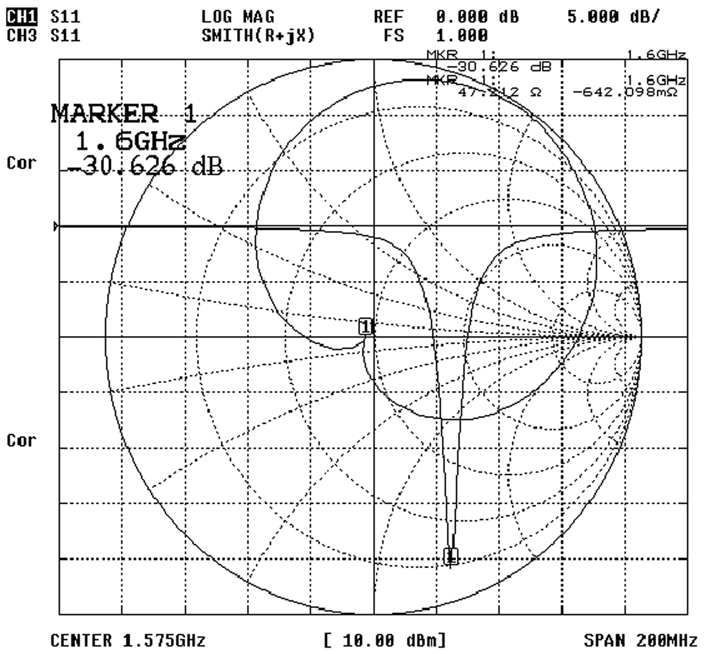

特性图 Typical Characteristic |
.gif) |
.gif) |
.gif) |
主要参数 Principal Parameters
型号
Part No. |
尺寸
Dimension
(mm)
|
中心频率
Center Freq
f0(MHz） |
带宽
Band width
(MHz) |
R.L@f0
(dB)
|
增益
Gain
(dBi)
|
接地面积
Ground Plane
(mm)
|
应用
Applications |
| CPA1595X05G10A |
15×15 |
1595.0 |
5.0 |
15.0 |
1.0 |
50×50 |
GPS |
| CPA1597X08G10A |
15×15 |
1597.0 |
8.0 |
15.0 |
1.0 |
50×50 |
| CPA1595Z10G25A |
17×17 |
1595.0 |
10.0 |
15.0 |
2.5 |
70×70 |
| CPA1588X05G25A |
18×18 |
1588.0 |
10.0 |
15.0 |
2.5 |
50×50 |
| CPA1575X05G20A |
20×20 |
1575.0 |
5.0 |
15.0 |
2.0 |
22×22 |
| CPA1579Z05G30A |
25×25 |
1579.0 |
5.0 |
15.0 |
3.0 |
27×30 |
| CPA1580X20G45A |
25×25 |
1580.0 |
20.0 |
15.0 |
4.5 |
70×70 |
| CPA1580Z20G45A |
25×25 |
1580.0 |
20.0 |
15.0 |
4.5 |
70×70 |
| CPA1268X05G40A |
35×35 |
1268.0 |
5.0 |
15.0 |
4.0 |
35×35 |
| CPA2450X200G10A |
8×1 |
2450.0 |
200.0 |
15.0 |
1.0 |
35×50 |
WIFI |
| CPA2450X200G10A |
9.3×3.0 |
2450.0 |
50.0 |
15.0 |
1.0 |
60×70 |
| CPA1616X20G45A |
25×25 |
1616.0 |
20.0 |
15.0 |
4.5 |
70×70 |
CHINA BEIDOU |
| CPA2492X40G45A |
25×25 |
2492.0 |
40.0 |
15.0 |
4.5 |
70×70 |
| CPA2375X30G25A |
18×18 |
2375.0 |
30.0 |
15.0 |
2.5 |
70×70 |
| CPA2375X40G25A |
25×25 |
2375.0 |
40.0 |
15.0 |
2.5 |
50×50 |
DMB |
| CPA2450E40G22A |
Φ16 |
2450.0 |
50.0 |
15.0 |
2.15 |
50×76 |
W-LAN |
| CPA915X12G30A |
78×78 |
915.0 |
12.0 |
15.0 |
3.0 |
78×78 |
RFID |
| CPA932X04G10A |
35×35 |
932.0 |
4.0 |
15.0 |
1.0 |
70×70 |
| CPA868X10G30A |
78×78 |
868.0 |
5.0 |
15.0 |
3.0 |
78×78 |
|
|
|
