part Number
|
工作频率
Operating Freq
(MHz)
|
带宽
Bandwidth
(MHz)
|
插入损耗
Insertion Loss
(dB)
|
带内波动
Ripple in BW
(dB)
|
回波损耗
Return Loss
(dB)
|
带外抑制
attenuation
(dB)
|
阻抗
Impendance
(Ω)
|
接口形式
Connect Type
|
温度范围
Temperature Range
(℃)
|
尺寸
Size
(mm)
|
| CM3A852-2450A |
CH1 |
825~880 |
|
5.5 max |
2.0 max |
10.0 dB min |
40dB min@WIFI & 925MHz |
50Ω |
SMA-F |
-40 ~ +80 |

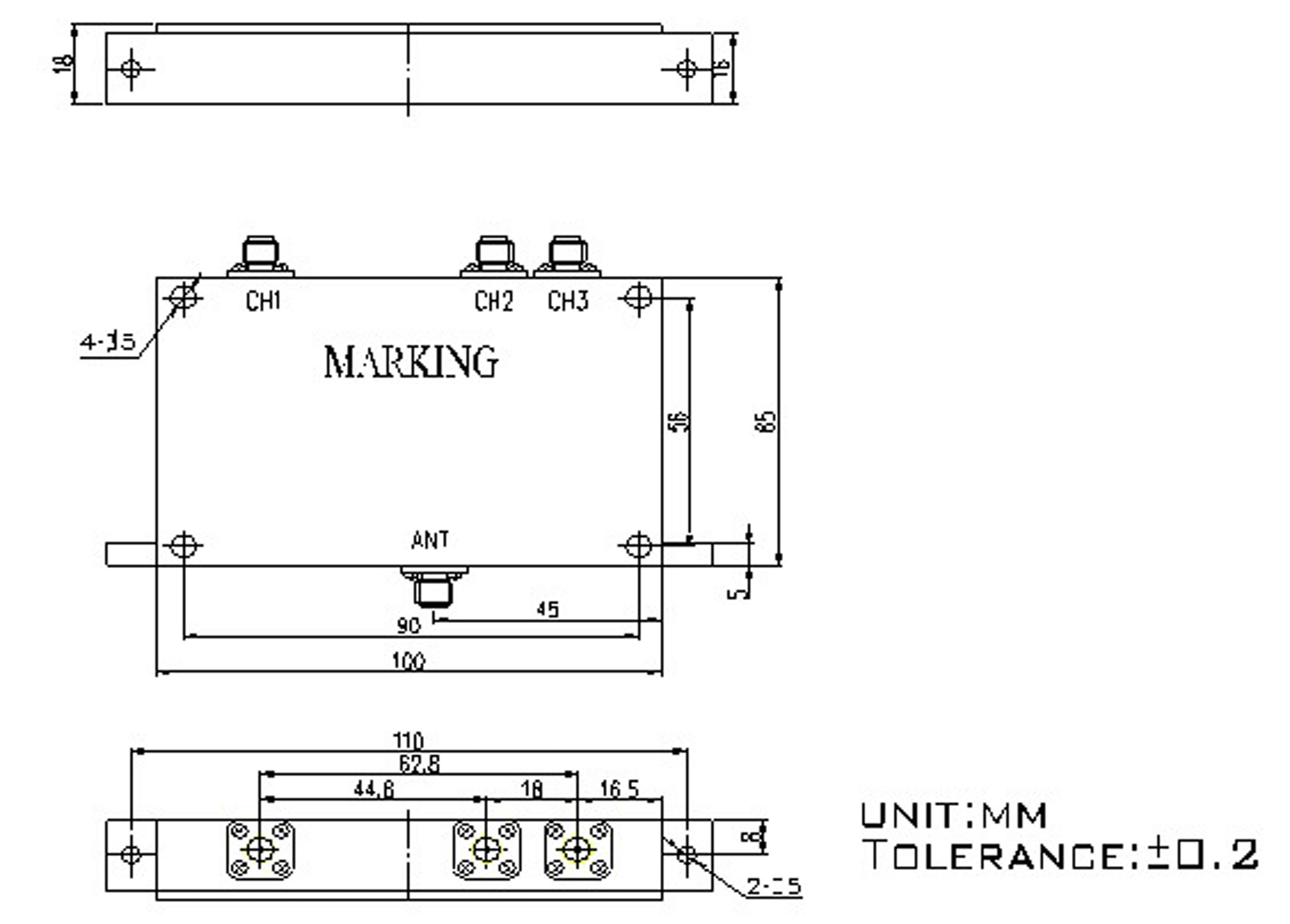

110×80×18 |
| 1920~2145 |
6.5 max |
1.5 max |
40dB min@WIFI&GSM |
| CH2 |
890~960 |
7.0 max |
2.0 max |
33dB min@3G&CDMA |
| 1920~2145 |
5.5 max |
1.5 max |
40dB min@WIFI & 852MHz |
| CH3 |
2400~2500 |
| 3.5 max |
1.0 max |
12.0 dB min |
40dB min@CDMA&GSM&3G |
| CM4A825-1785A |
CH1 |
825~835 |
|
3.5 max |
1.2 max |
18.0 dB min |
60.0 dB min@CH2
|
50Ω |
SMA-F |
-40 ~ +85 |
114×92×30 |
| CH2 |
870~880 |
|
3.5 max |
1.2 max |
18.0 dB min |
55.0 dB min@CH1
|
| CH3 |
890~915 |
|
3.5 max |
1.2 max |
18.0 dB min |
65.0 dB min@CH1
|
| CH4 |
1710~1785 |
|
1.0 max |
0.6 max |
18.0 dB min |
65.0 dB min@CH1
|
| CM4A825-1880A |
CH1 |
825~835 |
|
3.5 max |
1.2 max |
18.0 dB min |
60.0 dB min@CH1
|
50Ω |
SMA-F |
-40 ~ +85 |
114×92×30 |
| CH2 |
870~880 |
|
3.5 max |
1.2 max |
18.0 dB min |
55.0 dB min@CH1
|
| CH3 |
925~960 |
|
3.5 max |
1.2 max |
18.0 dB min |
65.0 dB min@CH1
|
| CH4 |
1805~1880 |
|
1.0 max |
0.6 max |
18.0 dB min |
65.0 dB min@CH1
|
